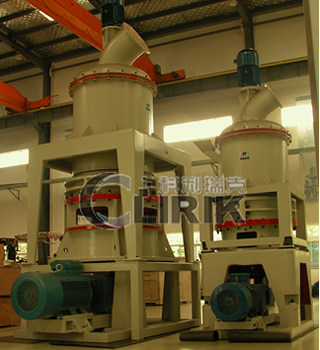

Silica powder grinder machine:
Silica powder grinder machine, which is designed by our engineers and technicians on the basis of multiple innovation, test and experience over two decades, has absorbed many advantages of home and abroad mill manufacturing technique. It has been proved by thousands of customers that our machine has outstanding features and stable quality. CLIRIK Silica powder grinder machine can upgrade its production and the additional value which is suitable for our customer to use. It is the ideal equipment for Silica.
The use of Silica:
Silicon dioxide, also known as silica (from the Latin silex), is a chemical compound that is an oxide of silicon with the chemical formula SiO2. It has been known since ancient times. Silica is commonly found in nature as sand or quartz, as well as in the cell walls of diatoms (frustule).Silica is used primarily in the production of glass for windows, drinking glasses, beverage bottles, and many other uses. The majority of optical fibers for telecommunications are also made from silica. It is a primary raw material for many ceramics such as earthenware, stoneware, and porcelain.
Powder grinder machine:
Powder grinder machine is for super-fine grinding materials with hardness less than 6 in Moh‘s scale and humidity less than 6 percent such as kaolin, limestone, basalt, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, carbon black, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment, up to 200 kinds. The granularity (or final size) of the finished products can be freely adjusted between 325-3000meshes (0.045-0.0057mm), and the capacity (ton/hour) ranges from 0.4T/H to 12T/H depending on the final size and the grinding materials.
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
| Ring Diameter(mm) | 800 | 930 | 1035 | 1035 | 1300 |
| Ring Number (PCS) | 3 | 3-4 | 3 | 4 | 4 |
| Roller Number(PCS) | 21 | 24-32 | 27 | 34-36 | 40-44 |
| Main Shaft Speed (r. p. min) | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
| Input Size (mm) | ≤20 | ||||
| Finished Size (um) | 5-47(325-2500) | ||||
| Capacity (t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
| Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
| Motor powder (KW) | 145-165 | 185-204 | 263 | 263-290 | 380-430 |
Note: This specification is just referencing, any changes are subject to the products.
Features and advantages of HGM series Silica powder grinder machine:
l、 High efficiency
Under the same finished final size and the same motor power, the capacity of powder grinder machine is twice as much as jet mill, mixing grinder and ball mill.
2、Long lifecycle of spare parts
The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3times longer than impact mill or turbo mill. Furthermore, the lifetime can reach 2-5 years for grinding calcite carbonate.
3、High safety and reliability
As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.
4、 High fineness and flexible adjustment
The final fineness of the grinding materials can be adjusted between 325 meshes and 3000 meshes, and the product fineness can reach D97≦5um.
5、Environment-friendly
The application of pulse deduster and muffler greatly alleviates dust pollution and noise.
