Gravel is ball type, high gloss, compression and wear resistant, easy back flush. It divided into pure white and noise two kinds, suitable for all kinds of filters retainer layer. Gravel is widely applied to various mechanical filter retaine

Product Details

Gravel is ball type, high gloss, compression and wear resistant, easy back flush. It divided into pure white and noise two kinds, suitable for all kinds of filter's retainer layer. Gravel is widely applied to various mechanical filter retainer layer of ideal cushion layer filter material. processing gravel, we have special Gravel industrial powder grinder; Gravel powder grinder series.

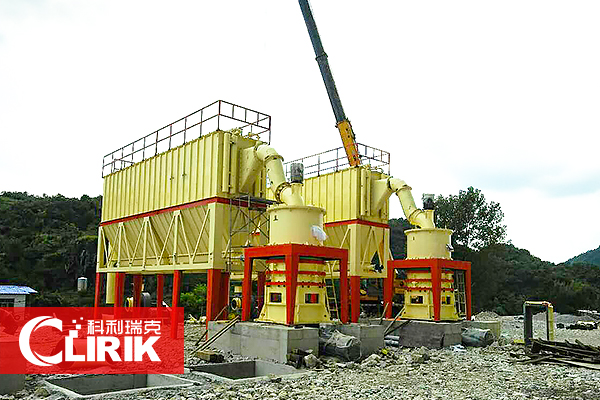

HGM series Gravel industrial powder grinder; Gravel powder grinder series mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe.When the Gravel industrial powder grinder; Gravel powder grinder series at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.

The high-pressure air blower constantly inhales air within the Gravel industrial powder grinder; Gravel powder grinder series and, in turn,  the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner, and clings to the surface of the filter bags. At the same time, the fine powders clinging to the surface fall down by the sudden vibration of the filter bags, which is caused by the instantly ejected high-pressure gas controlled by the pulse valve. The materials from the above two lots are sent by the conveyor at the bottom to get finished powders packed. In addition, filtered clean air will be emitted from the air outlet of muffler in the end.


Model and technical data of Gravel industrial powder grinder; Gravel powder grinder series:


Model HGM80 HGM90 HGM100 HGM100A HGM125
Ring Diameter(mm) 800 930 1035 1035 1300
Ring Number (PCS) 3 3-4 3 4 4
Roller Number(PCS) 21 24-32 27 34-36 40-44
Main Shaft Speed (r. p. min) 230-240 200-220 180-200 180-200 135-155
Input Size (mm) ≤20
Finished Size (um) 5-47(325-2500)
Capacity (t/h) 0.5-4.5 0.6-6.5 0.7-7 1-8.5 1.5-12
Outlet Size L*W*H (m) 13.9*4*6.2 14.7*4.8*7.2 18*4.6*8.6 18*4.6*8.6 14*9*10.25
Motor powder (KW) 145-165 185-204 263 263-290 380-430
Note: This specification is just referencing, any changes are subject to the products.

Shanghai clirik machinery co., LTD.
Should you have any questions on our powder grinder; micro powder grinder; industrial powder grinder; fine powder grinder; powder grinder series; powder grinder machine.please do not hesitate to contact us.
Phone: 0086-21-20236178;86-18918057603
Contact person: lily wang
Email:sales@clirik.com;   lilywang@clirik.com
Online consulting: http://www.saico.net ;http://www.grinding-equip.com;
http://www.powder-grinder.com;http://www.powder-mill.net.
Address: No.19 Fuqing Rd, Pudong New Area, Shanghai201201, China.


Gravel industrial powder grinder; Gravel powder grinder series:

Gravel industrial powder grinder; Gravel powder grinder series Under the same finished final size and the same motor power, the capacity is twice as much as jet mill, mixing grinder and ball mill. The ring and roller are forged by special material with high utilization. Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill. Furthermore, the lifetime of Gravel industrial powder grinder; Gravel powder grinder series can reach 2-5 years. As no rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.The final fineness of the grinding materials can be adjusted between 325 meshes and 3000 meshes, and the product fineness of Gravel industrial powder grinder; Gravel powder grinder series can reach D97≤5μm. The application of pulse deduster and muffler greatly alleviates the dust pollution and noise.
